Up-market servicing

It was meant to be, it was fate! After many years making do with cobbled bike work stands & support systems, it was pointed out to me (while in the shopping centre) that Aldi was having one of their bike stuff sales – & that a work stand was included! I’d never been enthused to spend lots of money on a super-duper work stand but maybe this one would do? Finished my coffee & trotted along & sure enough; a cheap work stand & probably good enough? After all, it did say, “Fits all bikes” on the box?

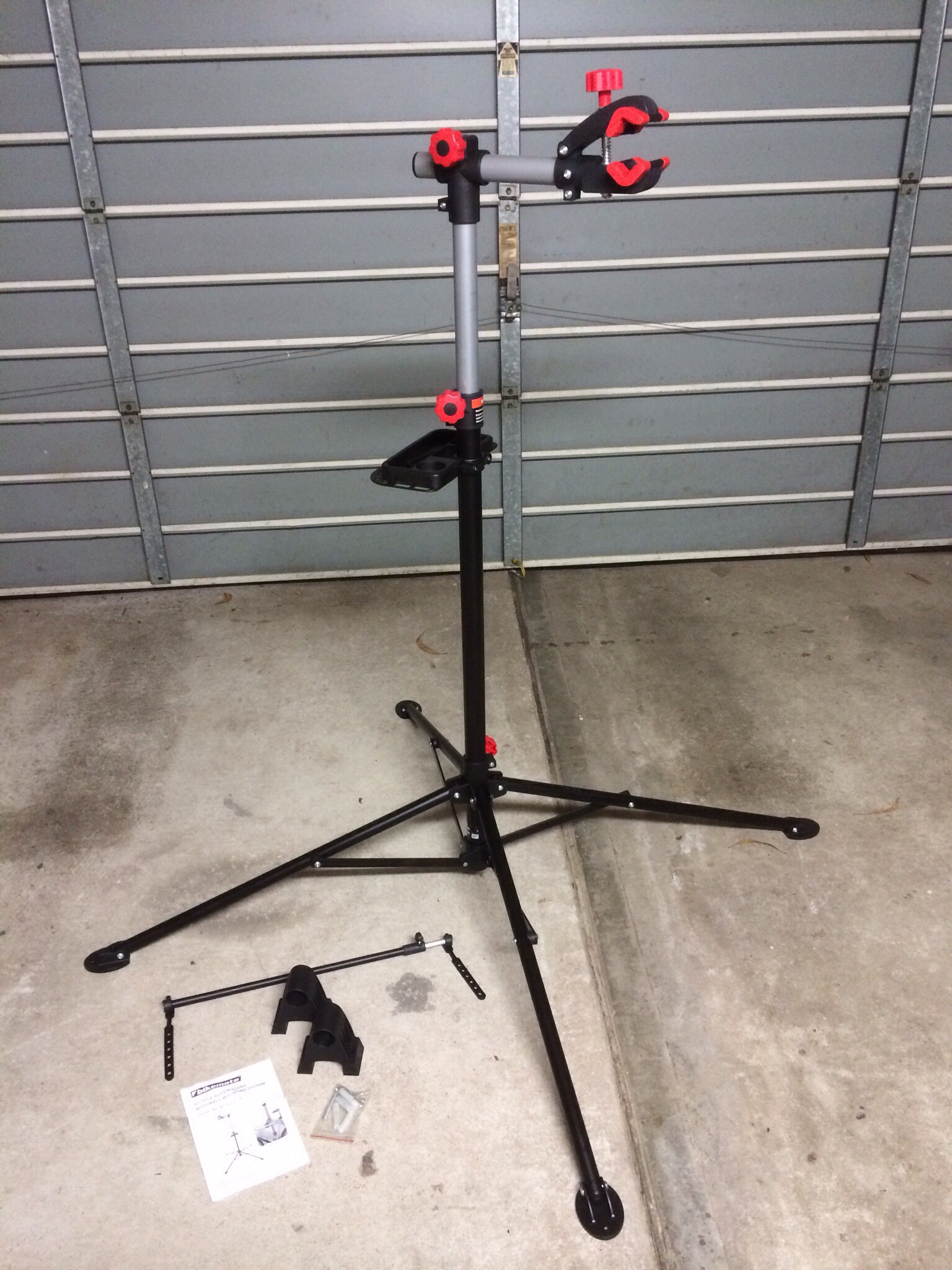

Back home & assembling it but noticed that the in-box instructions now said, “Fits bike tubes from 25 to 40mm”!? Oh well, maybe ok for the other bikes, if not the Bromptons? Here’s a pic of the assembled unit (with some irrelevant extra bits):

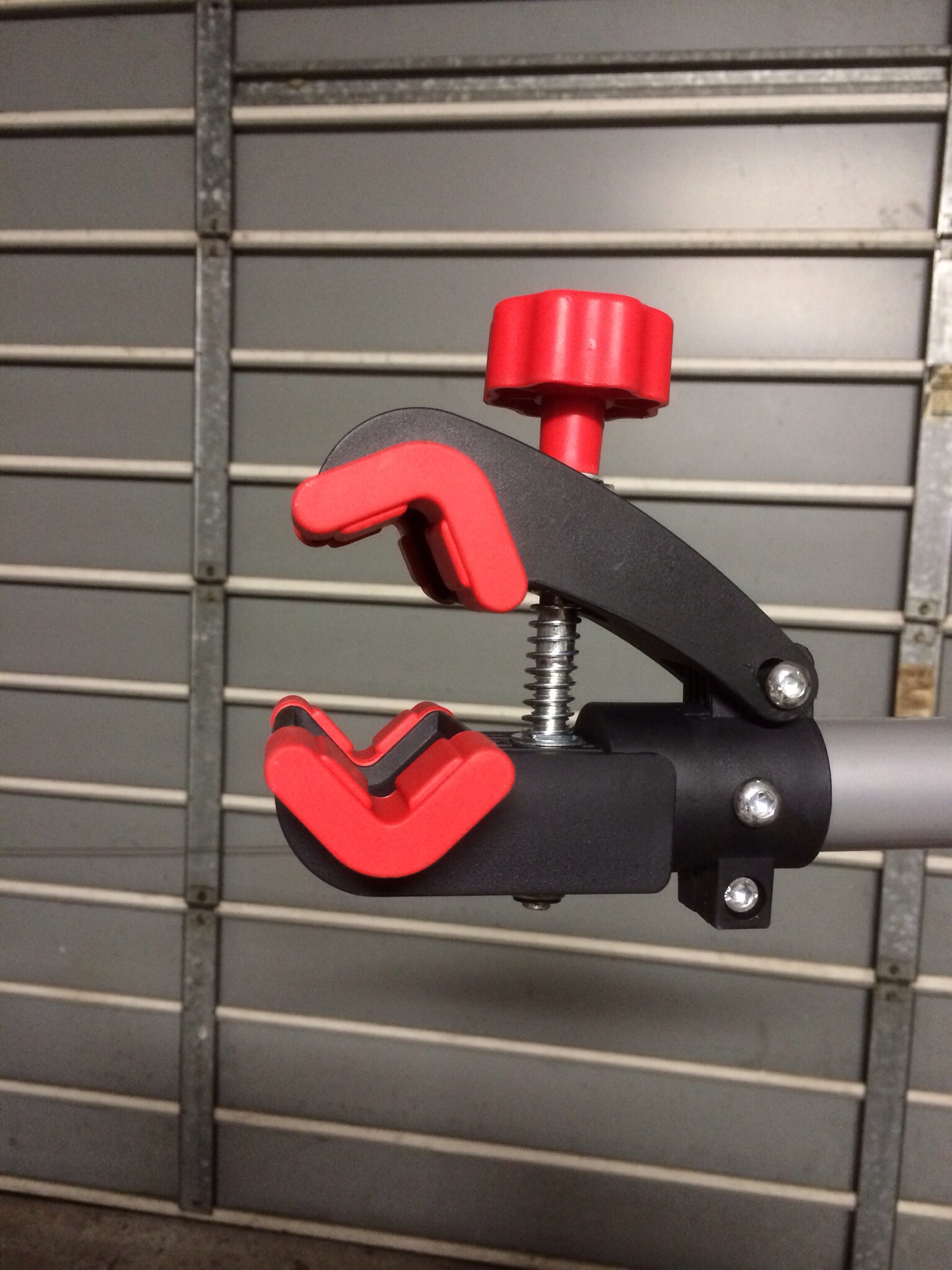

Trying the stand with Ralph highlighted a few things. The bike tube clamp was just big enough for a Brompton, although it would have better that the hinge have a cantilever arrangement in order that the clamp jaws were centred on the tube (ie the shape of the jaws ideally suit the smallest tube size but when the clamp is opened fully, the jaws give the impression of “fingers squeezing a lemon pip”?) I will probably fabricate something to get the clamp hinge further apart? Soon…

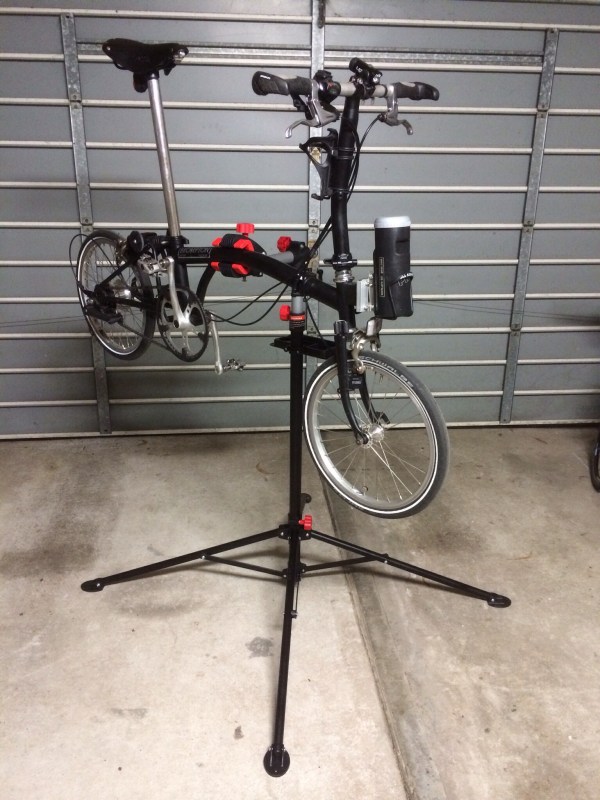

The alarming thing I found with using the stand with a Brompton, is that the clamping area on the mainframe tube is not the balance point. With more weight to the rear, you have to have all clamps done up tight to avoid the Brompton rotating! I pondered this for a while & then rummaged around the garage, resurrected my first version of a luggage block adapter, bolted a bidon cage to it, popped in a large sized tool container & filled it with garden pebbles. Hey presto! – a counter weight.
