Category Archives: Tweaks

Difficult shots

My photography skills are more aimed at practicality than perfection & probably limited through impatience & an inability to “see” what the ideal shot may offer? Where blog (or Twitter) posting is concerned, I’m happy with a topical or unusual subject pic & then the mind turns to the words that will accompany it. Hence, the effort to frame the shot is minimal & my concerns on what I could have achieved isn’t too much of a factor (& hopefully not too much embarrassment with the result?). Also, by sticking with iPhone or compact camera pics, the postings are simplified – & the equipment is my excuse for lesser output quality?

Looking through some recent pics, I noticed a collection of shots that are related through the difficulties in obtaining suitable shots. Mostly, my problems came through my preparations or foresight – or lack thereof?

First off, my classic pic of the finish of my cycling club’s major event (the inaugural Rob Hodgson Memorial Race – marking a sad loss through cancer). I waited beside the road for a finish pic but didn’t allow for a mitt holding a GoPro being stuck out at the last moment!


At the Australia Day CARnivale & admiring a Fiat Abarth & an immaculate engine-bay, I thought a side-on snap was the best I could do – without thinking that “shooting blind” into the compartment (as this visitor was probably doing) may have been worthwhile?!


Another CARnivale shot & here the professional foresight of a photographer (Mrs Aussie, I confess), captured a far more pleasing perspective of this tiny 1982 Honda folding motorcycle, designed to fit into a Honda City car (the equivalent to a Brompton in a Smart? – or maybe an Abarth?)


Finally, some successful preparation/foresight? Wanting a shot of Peregrine in new on-road unfolded pose (refer my “Pristine Peregrine” blog post) & in a perspective similar to how Peregrine originally looked via the Brompton Bike Builder system (as shown in blog post “Price shock”), I felt a need for a temporary stand? (quite effective although admittedly version 3)


Pristine Peregrine

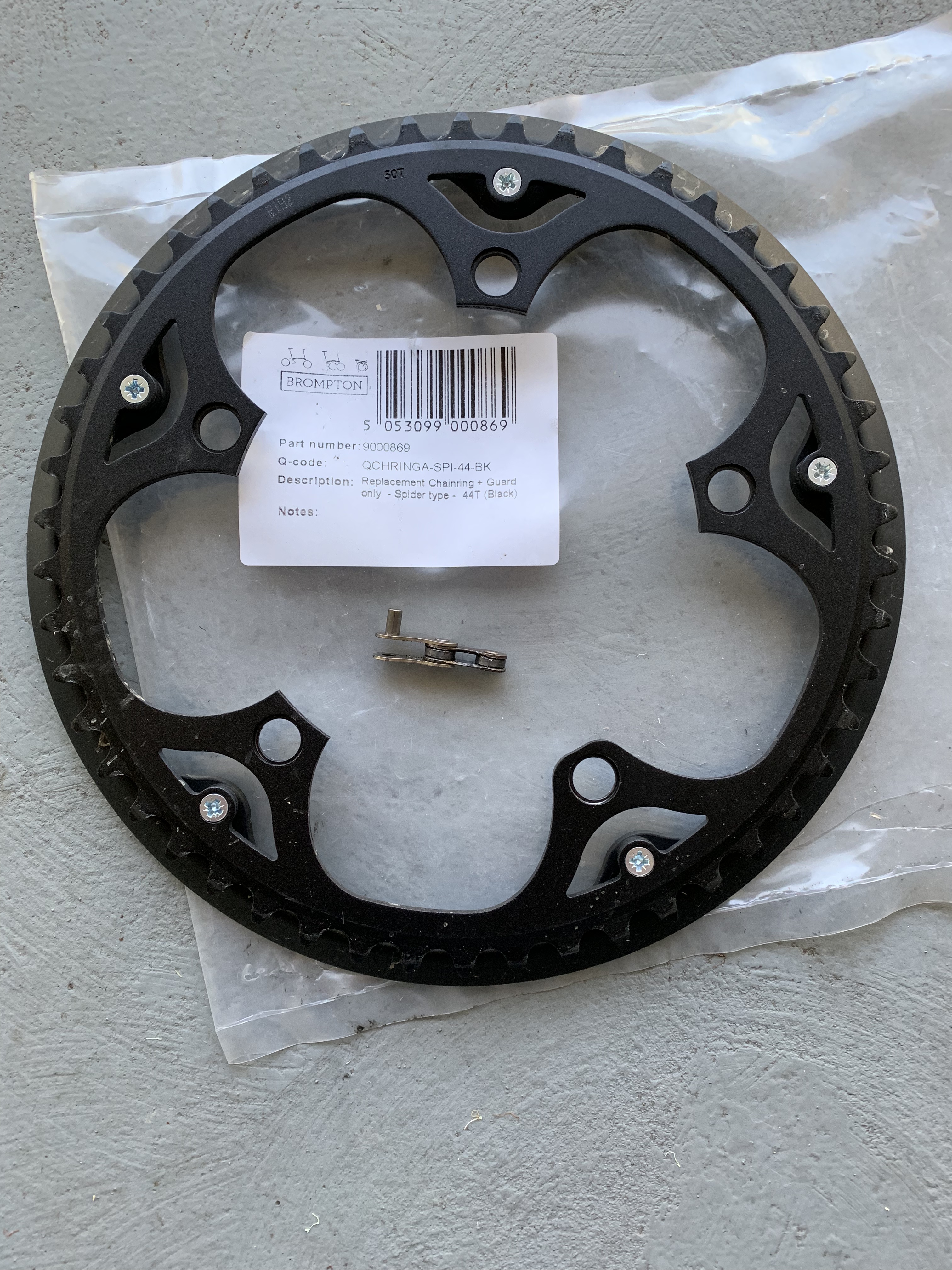

Phew! All done now! Pristine Peregrine has become Practical Peregrine in being modded to take the new Brompton S6E to a state ready for anything that Mrs Aussie is likely to tackle? (There is one issue still undecided but this is unavoidable for our scenario: buying a new stock Brompton at a “cannot resist” price. Yes, the stock Brompton comes with the stock 6-speed gearing & it will be interesting to see whether Mrs Aussie will cope? But then, that’s the beauty of the new crankset design in that the reduced (or raised?) gearing is available through just the change of crank rings – & a longer chain if the raised gearing option is desired?)

I must admit to feeling a little sad in now seeing Peregrine modded with various essential/desirable/irresistible bits. Where is that shiny new Brompton of a week ago? Maybe there is something to be said for keeping a Brompton absolutely stock standard? Oh well, perhaps next time? In the meantime, Peregrine has some mods that are all proven delights & all go to improving an unbelievably good flat-bar folding bike!

First off the rank for the mods was swapping saddles & installing a Brooks B17 Aged Ladies model (hmm… must give some thought to that wording?) from Robinson (my original Brompton currently running as an M6R with reduced gearing). Next was installing MKS removable pedals from the “squirreled parts bin”. A number of other bits came from the same source, before a new set of Ergon GP2-S handgrips went on.

Rubber choices were non-options by virtue of purchasing a stock Brompton, where Peregrine’s spec of a flat-bar, 6-speed Cobalt Blue Brompton with a firm suspension block & a luggage block were pre-ordained by Kobie, the Australian Distributor. Hence, I was going to have to take my own actions if I wanted Presta-valve tubes & Schwalbe Marathon Plus tyres (to replace the standard Schraeder-valve tubes & Brompton tyres). I have no experience of the new issue Brompton tyres; I just preferred to fit a known “bullet-proof” (or perhaps, “Mrs Aussie-proof”?) set of rubber – that had, incidentally, seen service on Ralph during last year’s UK-tour! The fitment of the M+ tyres wasn’t an issue (well, just the usual M+ fitting issues?) & I can’t say that the new Brompton double-wall rim design was any easier/harder for fitting? What I was pleased/surprised about was that the tyre swaps were achieved without having to touch a tyre lever! ie the Brompton tyres (once deflated) were able to be pulled off the rims without much effort!? (Not something that I ever expect to hear of for the M+ tyres! – & with sidewalls that seem as tough as some tyre treads?)

The final steps were to pop a Brompton Toolkit & a spare tube into the main frame sections & then to fit a new Lezyne Micro-Drive front light to the handlebars. (This model light is the only good/small light that I’ve seen, that will mount back from the front of the handlebars; avoiding issues with the fold, where an overhanging light will clash with the front wheel, forks or cables, etc.)

I tried to remember to weigh various of the components & the whole bike at certain stages. For the components I’ve included some of the weights within the mods listing below & for the whole bike I can report that the initial weight of 11.42 kg (11.3 according to Brompton?!) has grown to 12.85 kg (ie on-road weight complete with tools).

Full listing of mods:
Brooks Ladies B17 Aged saddle in place of Brompton item (590g vs 460g)
MKS Ezy removable pedals in place of Brompton items (430g each pair)
Removable pedal storage bracket mounted on rear frame (storage of LH pedal)
PDW rear light mounted at top of seatpost
Eazy wheels in place of roller wheels
Cateye Strada Wireless bike computer (fitted to Profile Design UCM on handlebars)
Brompfication hinge clamps & springs in place of Brompton items
Bidon cage (my “non-patented” design mounted on stem)
Ergon GP2-S handgrips in place of Brompton items (230g pair vs 0g?)
Schwalbe Marathon Plus tyres in place of Brompton units (480g each vs 240g each)
Schwalbe Presta-valve tubes in place of standard Schraeder-valve tubes
Lezyne Micro-Drive front light mounted to handlebars
Brompton Toolkit in mainframe
Spare Schwalbe Presta-valve tube stored in mainframe


Cluttered cockpit

For my last 2013 blog post (along with my best wishes to you for the new year) I wanted to show the rather cluttered cockpit of Ralph, my Alfine 11-speed Brompton. The handlebars have become somewhat crowded over time with an assortment of old & new gadgets. Now, Santa has apparently thought that my blog could benefit from including some videos & so I’ve gained a GoPro camera (the Hero3 White unit).


In 2014 I’m expecting that I’ll have some blog postings to explain the what, why & how of all these bits & tweaks – including how the Brompton fold is affected (or not, in my case)


So, a brief summary of what to expect from the above:
I foresee the GoPro featuring in various posts, both with setup/use & (hopefully?) for some decent video output?
My “work-in-progress” with the iBike Newton power meter may take some time before I can disclose how/why this has replaced my Garmin Edge 705 computer?
The Lezyne Micro Drive front light is great – & particularly relevant to use on a Brompton!
Long overdue is a post about my computer mounting system that avoids conflicts with the Brompton fold?

And no doubt more…

Let’s have a happy new year!

Sorry Miles

My original version of a Bidon Cage was fitted onto both Bromptons, Ralph & Robinson, & have proved to be an excellent setup (if I do say so myself!?). They were really meant as an interim solution, until Brompton released their rumoured “magnetic water bottle” or something else came along that I was happy with. One unit that I’d read about (but never encountered in Australia) was the Monkii bidon cage & Brompton stem mount adapter. The reviews were good & once seeing them with the designer, Miles, at the CycleMiles stand at BWC2013, I figured they would be a quality addition to my Brompton tweaks (or at least deserved an evaluation?).

Once back in Australia, I started to have some reservations but fitted one to Ralph anyway. My concerns were minor & there were some good points about the Monkii cage, so I just had to give them a go…

My evaluation went well for about a month & I became quite comfortable with their different operation to a standard bidon cage (ie the Monkii cage has a Velcro strap to hold it to the bidon & the cage clips onto an adapter bolted to the Brompton stem). I also found that I coped with (mostly) leaving the bidon strapped to the cage when off the bike & when using the Tardis “cup holder” (in our VW T5 Campervan). When folding Ralph, I made sure I unhooked the bidon/cage first & then clipped it back on after the handlebar was folded. (This avoided any fluid spill & accidental unclipping of the cage when the bidon was inverted with the handlebar fold.)

The turning point of the testing process came about when I needed to double-back on my ride to retrieve my bidon laying on the ground after being ejected vertically from the adapter clip through the jolt of riding up a driveway ramp! Not ideal & I could see no easy way of improving or tightening the cage clip onto the adapter lug. Sorry Miles, maybe I should have advised of my misfortune & maybe you’d already had a solution? With my version of a bidon cage having held up so well & so long – & survived all trips & travel without needing to be removed from Ralph or Robinson – it was a no-brainer to resume using it.

Refer pics of “Mr Aussie’s (non-)patented Brompton Bidon Cage” (ie 2 bits of bent alloy strip, some dense foam (with adhesive), stainless nuts & bolts, 2 O-rings & a proprietary standard cage)



Minimalist multi-roles

Well, here we go again; another trip coming up in the Tardis , our VW T5 Campervan. This time however, the Tardis will be more of a T5 Transporter than Campervan, as we’ll have an extra passenger in Mrs Aussie’s Mum.

The trip with “the Mum” has highlighted what we seem to take for granted; that the step into the Tardis is a fairly tall one. Perhaps it was time to get ourselves a little portable step? Looking around I couldn’t see anything that fills our usual criteria of items readily integrating into the van & ideally having dual roles? (Our Tardis is deceptively spacious but can’t match its namesake!)

Another thing I’ve been meaning to do, is setup a support frame or such for when carrying a Brompton in the passenger area. Robinson fits neatly under the bed in the rear but Ralph usually just lays on the floor in the rear passenger area with some packing under the Alfine rear hub to avoid the pointy acorn axle nut digging into the floor. (Robinson is a rack model Brompton & when laid on the side, the rack/Ezi wheels & the MKS removable pedal adapter (with pedal removed) become three points of contact with the floor & makes for a stable package. Ralph has no rack & the wider rear frame with Alfine hub becomes one contact point, along with the MKS pedal adapter & Ezi wheel.)

After pondering the separate issues of T5 step & Ralph’s support system, I realised I could combine everything. I found that my wooden work stand was a good size for a step (albeit not really stable enough) & that the handle bar support legs where ideally placed for supporting a Brompton frame. Turning to my stock of timber off-cuts I then constructed some “support boxes” that would become leg supports for the step, supports for keeping Ralph’s acorn axle nut off the floor & also a seat protection pad for when using the work stand in its original role.

Enough of trying to explain all this in words, let’s see some piccies of the work stand in a multi-use way – step, mobile stand & support cradle (& when not in use can be stacked on the side door sill beside the sliding door).





Hopefully that’s all made sense, although perhaps I should clarify:
The work stand fits any of my bikes & usually sits in the garage but I’ve often missed it while on a trip. Now, with the recent Aldi purchase of a work stand, my mobile work stand may stay in the Tardis?
I don’t expect to carry both “the Mum” & Ralph on the next trip (Ralph will stay home & other bikes will be on our rear bike carrier).

Up-market servicing

It was meant to be, it was fate! After many years making do with cobbled bike work stands & support systems, it was pointed out to me (while in the shopping centre) that Aldi was having one of their bike stuff sales – & that a work stand was included! I’d never been enthused to spend lots of money on a super-duper work stand but maybe this one would do? Finished my coffee & trotted along & sure enough; a cheap work stand & probably good enough? After all, it did say, “Fits all bikes” on the box?

Back home & assembling it but noticed that the in-box instructions now said, “Fits bike tubes from 25 to 40mm”!? Oh well, maybe ok for the other bikes, if not the Bromptons? Here’s a pic of the assembled unit (with some irrelevant extra bits):


Trying the stand with Ralph highlighted a few things. The bike tube clamp was just big enough for a Brompton, although it would have better that the hinge have a cantilever arrangement in order that the clamp jaws were centred on the tube (ie the shape of the jaws ideally suit the smallest tube size but when the clamp is opened fully, the jaws give the impression of “fingers squeezing a lemon pip”?) I will probably fabricate something to get the clamp hinge further apart? Soon…


The alarming thing I found with using the stand with a Brompton, is that the clamping area on the mainframe tube is not the balance point. With more weight to the rear, you have to have all clamps done up tight to avoid the Brompton rotating! I pondered this for a while & then rummaged around the garage, resurrected my first version of a luggage block adapter, bolted a bidon cage to it, popped in a large sized tool container & filled it with garden pebbles. Hey presto! – a counter weight.


Mungo tweaks

Pre-Brompton came Mungo, a Dahon Vector 27-speed 20″ wheel size folding bike. With thoughts of traveling & not wanting to go through the difficulties of transporting a full-sized bike via airlines & rental vehicles, Mungo gave me a near-road bike feel & with a good range of gears. However, Mungo also showed that it was still going to be a case of disassembly if I hoped to travel with an airlines-compatible single case or soft bag & avoid needing a larger-sized rental car. Fortunately, 2 Bromptons unexpectedly/miraculously came along via eBay “Buy now” purchases & Mungo lost out on seeing the world? (As has Daisy, a Dahon Vitesse 18-speed flat-bar model that Mrs Aussie also found via eBay.)

Another purchase for local travels & trips has been the Tardis, our VW T5 Campervan. While our T5 has a good spot for one Brompton in the rear compartment under the bed, a rear bike carrier is necessary for whichever of our bikes go with us on multi-day trips. Mungo & Daisy fit well with the Tardis trips; all-purpose bikes with mudguards, side-stands & nice rides but with the added benefit of foldability for storage when we don’t want to lock them (unfolded) on the bike rack.

Warning: some paragraphs follow that involve mathematics. Perhaps you may have a need to scroll/swipe to the last paragraph & pic?

What an all-purpose bike also needs, is a range of gears that will suit most terrains that our trips take us to. Rather than just test riding a bike up every hill you can find, to see if the gear ratios are suitable, a means of comparing gear ratios is to obtain/calculate the “Gear Inches” (GI) by multiplying the gear ratios for bottom & top gears by the diameter of the wheel. For some people this may be somewhat difficult but for me I’ve already dug out the hub gear info (eg via Hub Gear Calculators on the Internet), I can count the teeth on the rear cogs & chainrings, & I can measure the wheel diameter. Actually, this last item is usually very difficult if you’re resorting to a tape measure so the best way is to calculate the diameter from the ETRTO size on the tyre. The ETRTO size for a Brompton Kojak is 32-349 & the formula for calculating wheel diameter in inches is (2×32+349)/25.4 (ie 413/25.4 = 16.25). An additional tip if you want to set your bike computer wheel size, is that the wheel diameter of 413mm can be multiplied by Pi to give the wheel rollout distance of 1297mm. How’s that? & all without needing a tape measure!

Getting back to the GI calculation & using Ralph, my Alfine 11-speed Brompton, as an example, the low speed GI is 50/18×0.53×16.25 which equals 24 (ie chainring teeth divided by rear cog teeth times hub low ratio times wheel diameter). The top speed GI is 50/18×2.15×16.25 = 97 & therefore the GI range can be expressed as 24-97. Once we get the GI for other bikes you can start to compare how the bikes would cope with hills (or even how they might compare for top gear speed?)

Before I eventually resume my tale about Mungo, let’s compare some GIs. A typical road/race bike that uses 53 & 39 teeth chain rings & an 11-25 teeth cassette has a GI of 41-126. A mountain bike could be about 17-105, while Robinson, my 6-speed “reduced gearing” Brompton is 29-88 & a 3-speed Brompton would be about 44-79, depending on options. As you may see, nothing beats an MTB on being able to climb hills – just as long as you can keep the front wheel on the ground? Also, if you want to go fast on your Brompton on the flat then you’ll have to pedal like crazy to be ahead of the race bike.

The beauty of Mungo is the feel of riding a road/race bike with similar gear shifters & fairly light weight, as well as a GI of 28-123. This comes from the small wheel size, a 53 teeth chain ring, an 11-26 teeth cassette & 9-speed rear derailleur but also with a 3-speed SRAM dual-drive rear hub (similar to the 6-speed Brompton with a 2-speed derailleur setup & a 3-speed hub?). A scan of the above GI figures should show that Mungo is ably suited to getting up hills, as well as being pedaled fast.

Unfortunately for me, my heart-related limited blood/oxygen capacity (refer earlier blog post Hill performance for info) still puts Mungo (& me) at a disadvantage when I compare it to Ralph’s low speed gear climbing ratio. Having resolved Mungo’s original tendency to drop the chain when in top gear (by fitting a fixed front derailleur to contain the chain onto the front chainring) & considering that Mungo’s missed out on any overseas trips, it seemed a shame that Ralph could be preferred for climbing hills reached while on Tardis trips? No, Mungo wasn’t going to lie down & its standard crankset size suggested to me that a 39 teeth chainring from my box of bike bits was going to be a good swap with the usual 53 teeth item? So, here’s a pic of Mungo now equipped with the smaller front chainring (which provides a GI of 21-90, seems to escape the MTB tendency to wave the front wheel on steep hills & still gives a top gear “adequate” for my current capabilities?). Mungo rides again?!


Tyre & tube war

I wonder how good the new Brompton double-wall rims are? I’m certainly familiar with the design type on other bikes & on Ralph’s rear wheel (a Sun rim laced to an Alfine 11speed hub). A number of my blog posts have mentioned the Sun rim issue of a rather flat profile & so perhaps no more for this post?

Double-wall rims have the major benefit of the spoke heads being below the tyre mounting area & thus not contacting the tube. Often the rim will have holes in the tyre mount area, that align with the spoke heads mounted in the lower rim. Some rims will even have no holes (aside from the valve hole) & theoretically not require any rim tape. (Note that last careful choice of words, but for this post I’ll say no more about my experience of going without rim tape on some race bike wheels.)

Unfortunately Ralph & Robinson are still running the older style Brompton rims on 3 out of 4 wheels & so fitment of rim tapes is critical. Recently I’ve become aware of an issue that is possibly self-induced but some long-term testing may be required for my fix? Getting back to the rim design (no photos here; just your visualization), the narrow Brompton rim with its deep well means the spoke heads don’t sit flat on the rim bottom surface, but contact the rim part-way up the curved well area & alternately mount left & right of the well centreline. What this does is leave each spoke head at a slight angle & prevent a “super flush” surface. This is where the quality & accuracy of the rim tape installation comes in, to ensure a smooth, complete coverage of the spoke heads (that are just longing to bite into the rubber tube?). My first sight of a Brompton rim with the plastic rim tape loop, alarmed me that the tape had wandered or moved from a path that fully covered the spoke heads (& was so hardened that I couldn’t relocate it), & so I switched to using adhesive-backed cloth tape on my Brompton rims (with a thinner version for the Sun rim).

As the Brompton brake calipers don’t have a quick release mechanism (I haven’t changed the subject; stay focused), I prefer to deflate the tyres whenever I’m removing any wheels – rather than release the brake cables & have to fiddle around adjusting the brakes once the wheels are back on. In my limited Brompton experience, the longest I’ve had any tyres mounted has been the 18 months that Robinson has been running Schwalbe Marathon Plus models. No punctures but rather a lot of tyre deflations/inflations in that time? (I confess; tinkering, cleaning, what-have-you – & some recent airline travel that we felt obliged to follow the airlines advice & deflate the tyres!?)

During & following our recent UK trip, Robinson suffered 2 unexpected flat tyres; 1 to the front & the other to the rear. Each time I found that the tubes had “abraded” or chafed on the inner surface at a spoke head point. The Zefal cloth rim tapes were prefect & no sharpness was detected at the spoke head. Another tube went in & we continued merrily along (with a growing suspicion about those spoke heads). What I had noticed was regular spoke head impressions all around the inside of the tubes. Hard to see in pics; eyesight or feel are conclusive!


I assume the spoke heads make quite a firm contact with the tube & that deflations/inflations/”air top-ups” cause a lot flexing & chafing at the pressure points? What can be done? Well, this could be my chance to justify new Brompton double-wall rims? (or maybe not just yet!) “Do nothing” is one option where I could ignore it & await another unexpected deflation? Regular inspections aren’t really the answer, although very close tube examination may highlight any advanced chafing? (being hopeful aren’t I?)

One thought I had was that the cloth rim tape too easily follows the exact shape of the spoke head & that plastic rim tape loops may be kinder/smoother? For Ralph’s front wheel I fitted some Brompton plastic rim tape but the difficulty of correctly locating the tape within the well resulted in an overnight loss of confidence & I switched to using some thin 16mm wide BBB cloth tape & then refitted the plastic tape over the top. My thinking with the 16mm tape (wider & thinner than the usual 13mm tape I use on the Brompton rims) was to cover the well a little further than usual & leave the plastic tape to fall into the well entirely (rather than the plastic tape alone, trying to “walk”up the side of the well when being fitted).

Next I turned to Robinson’s front wheel & I tried leaving the Zefal cloth tape in place but also fitting a plastic rim tape loop over the top. Unfortunately, the difficulty in refitting the Marathon Plus tyre showed that the total thickness of tapes was leaving insufficient room in the well. I then tried another layer of Zefal tape over the top of the original, & managed to refit the tyre. At this point I feel I’ve got the ideal basis for a long-term test – & decided to leave Robinson’s alone (or maybe I just got fed up at the time & then later decided to make it a three-way comparison test?).

Current state-of-play (early October, 2013) –
Ralph’s front rim with BBB + plastic tapes
Ralph’s rear rim (double-wall Sun brand) with BBB tape
Robinson’s front rim with 2 layers of Zefal tape
Robinson’s rear rim with 1 layer of Zefal tape.

Which will win out? Will there be any difference? Will a genuine puncture mess up my test? My guess is that something else will change – & my test will be redundant?

Toolkit testing

I think the Brompton Toolkit is a lovely piece of equipment. Nicely engineered & well thought-out – but with flaws included? The tyre levers have certainly come under criticism owing to breakages & I await the production of redesigned levers. (Having purchased 2 toolkits in the UK recently, I’m no longer awaiting the re-release of the toolkit; just the levers.) My toolkit purchase was made with the knowledge of the flawed levers & their expected replacement, but I thought that the levers may be sufficient “as is”? (& the rest of the toolkit was irresistible?)

The lever design is interesting; fitting together to minimize space within the storage housing & meant to be kept together when commencing a tyre removal. Once the tyre bead is levered over the rim, one lever can be clipped to a spoke & the other lever is then slid around the rim, progressively pulling the rest of the bead over the rim. However, stage 1 of the flaw is that users will read the instructions & follow them. The next stage is that the levers are not strong enough to survive usage that fails stage 1. Personally, I believe that there is a further stage in that the Brompton tyre levers weren’t designed to operate on anything other than stock Brompton rims (more later).

As for other flaws, perhaps it’s nit-picking to say that the ratchet & removable bit usage is going to be compromised depending on the positioning of the item being adjusted/removed/whatever? Time will tell, hopefully not at the wrong time & place?

The spanners that are cleverly combined within the tyre levers have been ok for my minimal use & the wheel spanner (when still fitted in the case) is very comfy – as compared to gripping it when removed?

On-bike storage within the front section of mainframe is neat & effective (far easier than my previous on-board tool set: wheel spanner, tyre levers & Allen key-set tied with a rubber band, wrapped in disposable gloves & maneuvered into the mainframe front section). I haven’t “lost” the disposable gloves; they’re now included with a spare tube, wrapped In a piece of fiberglass mesh & stored in the mainframe rear section. (The mesh makes it easier to insert the items in the frame & gives me something to grip when extracting everything.)

Testing:
As an on-bike emergency toolkit, it’s seems ideal – but to date my toolkit testing has all been done in my garage & mostly of an elementary effort, although the tyre levers have been used a number of times.

Unfortunately I have to divulge the test score as:
tyre levers 3, Brompton single wall rims 0
tyre levers 0, Sun rim 1
That’s correct, the rear wheel on Ralph, my Alfine 11speed Brompton, has defeated one of the levers & snapped off a piece. Owing to the rim having a rather flat profile, there’s very little well for the tyre bead to sit in when removing the tyre & hence getting the bead over the rim is “difficult”. From what I remember, the pair of levers were good enough to get the bead over the rim initially, but when I tried to slide one lever sideways (very difficult), the thinner lever couldn’t stand the pressure between the rim & tyre (a Marathon Plus) & the end snapped off! (Ralph &/or I shall be carrying a separate set of tyre levers until further notice!)


Ralph refreshed

Ralph has been suffering a bit of late. I could see the chain needing replacement & I wasn’t happy with the chain tensioner alignment, so it was time to take action. My earlier postings on “Ralph’s flaws” probably cover my issues with the chain tensioner & occasional chain loss on unfolding. Having removed the rear wheel & taken off the rear cog for inspection prior to obtaining a replacement to go with a new chain, I felt compelled to look further & wanted to check out a “chewed up” Alfine 11-speed hub seal under the rear cog. I shall not repeat here my embarrassing boo-boo with the seal (refer my “Extra tools” post for the sordid details) but then set out to source all the parts I would need.

Checking an exploded diagram of hub parts, I determined that I needed to obtain the seal (or dust cap, to give it its correct name), a chain guard (missing from Ralph?), rear cog & chain. Thinking I should support the local bike industry, I sought the Alfine parts from Shimano – only to find that I could only get the dust cap by purchasing the whole internal hub assembly! Rather than spend a few hundred dollars (at least?) locally, I turned to SJS Cycles, my UK online Brompton parts source who also deal in Shimano parts. Yes, no problems with the individual parts & everything arrived promptly (about $15 total for the dust cap & chain guard). I had already obtained the dust cap tool via eBay (no prizes for guessing that I couldn’t readily obtain it locally).

The distorted chain tensioner & poorly engineered sprocket wheel mounting (once again, this background in earlier blog posts) were definitely to be addressed but I first needed to obtain better spacers to fit between the sprocket wheels & chain tensioner arms. No luck with finding anything to fit or adapt, so I considered getting some spacers turned out of alloy but then it occurred to me that 3D Printing the spacers would be the ideal solution. A bit of Internet research, a phone call & my simple spacer requirements (no need for me to generate 3D imaging for the basic cylindrical spacer) were produced & delivered in about 2 working days. I’m very pleased with my first foray into 3D Printing!

Refer pics of an ABS plastic spacer & the chain tensioner components – showing new & old (stainless steel) spacers –



The reassembly work started with grinding a protrusion off the new plastic chain tensioner body (something included for the normal use as a 2/6-speed derailleur unit) & creating a little more clearance to the Alfine gear change mechanism. Then I could assemble the jockey wheels with my new spacers & the chain tensioner was ready for installation. For the rear hub refresh, I fitted the new dust cap & then the chain guard (missing from Ralph & I’m pretty confident that it was left off through being impossible to fit, once somebody had mangled the dust cap through not using the correct fitting tool). The new rear cog went on & was retained by its circlip & finally the gear change mechanism went back on. The rear wheel was then refitted, a new chain added & the chain tensioner attached. Done!

How has it worked out? Ralph is purring! The new dust cap & chain guard now provides less chain drag, noticeable when back-pedaling, which allows the tensioner to maintain pressure on the chain during the fold & unfold operations, thereby curing the chain drop issue? The new chain tensioner & better sprocket wheel support has improved the chain alignment & probably also lessened drag on the chain. (I had thought that the chain drop came just from the distorted chain tensioner, bad chain alignment & maybe from the tensioner spring action appearing to be weak but hadn’t recognised the effect of the damaged hub dust cap.) Ahhh… bliss is an efficient bike!

Before & after pics below –
